How to Choose Laser Nozzle

Nozzle is an important parts for laser cutting process.There are many types of laser nozzles.

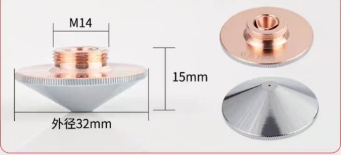

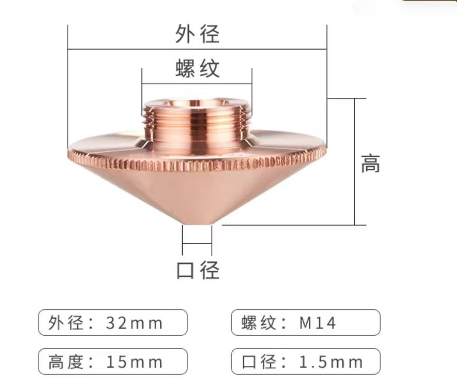

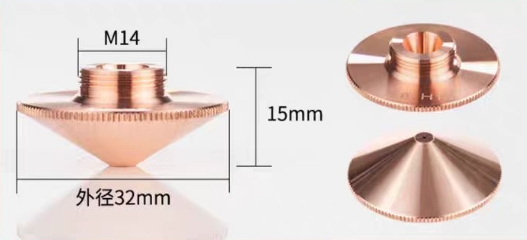

1.Single-Layer Nozzle

Single lasyer nozzle is for cutting stainless steel ,aluminum plate ,copper plate when using N2 and air as aid gas.

The following is most popular size for single layer nozzle.

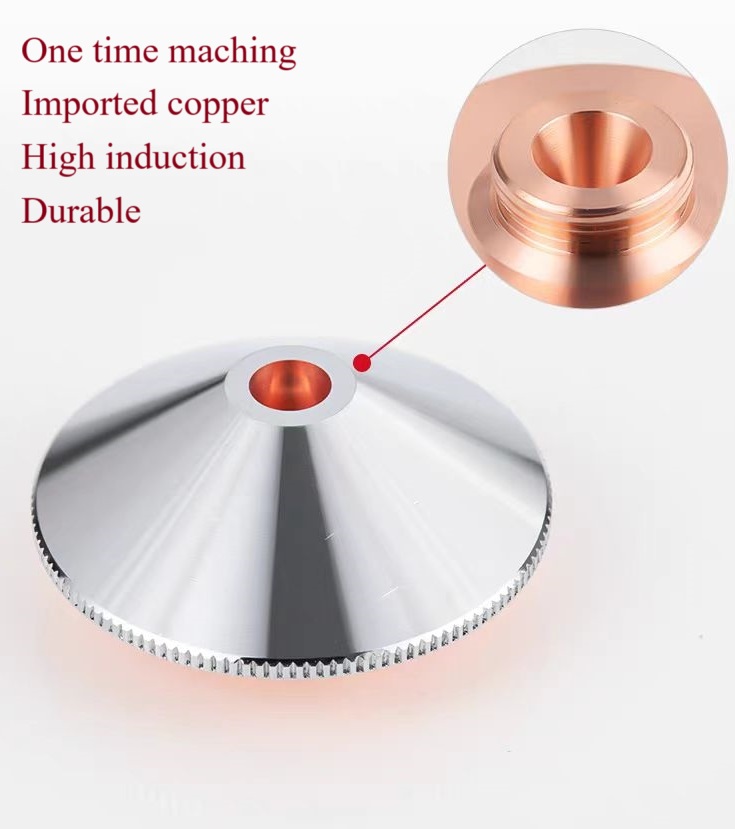

One time machining ,imported copper ,high induction and durable

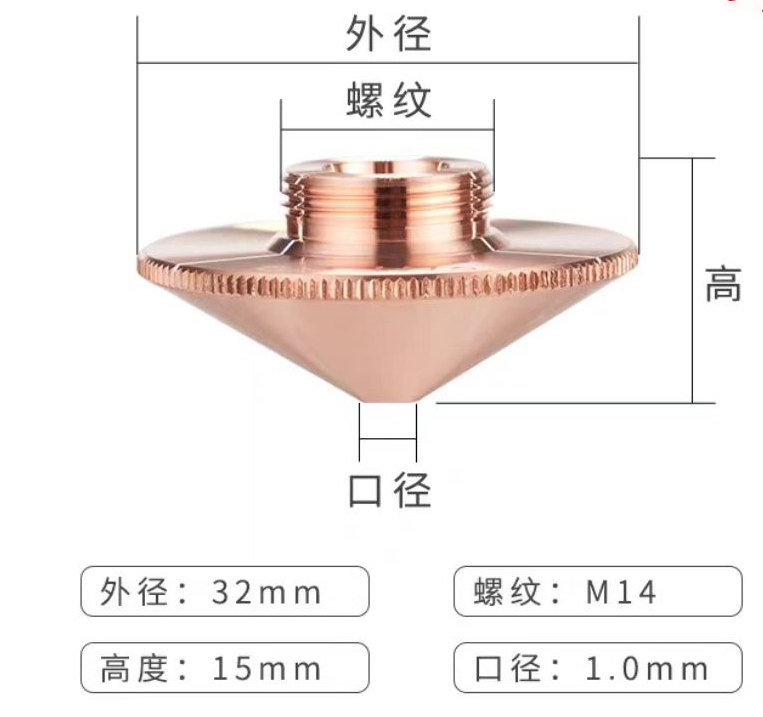

D32*M14*H15*Φ1.0  120GJT510E

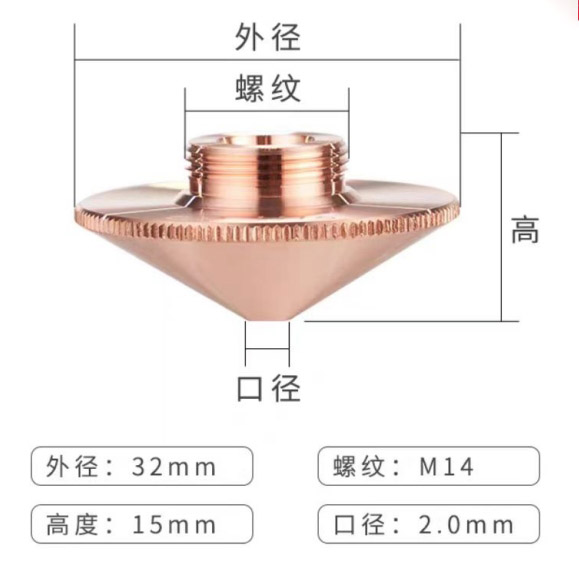

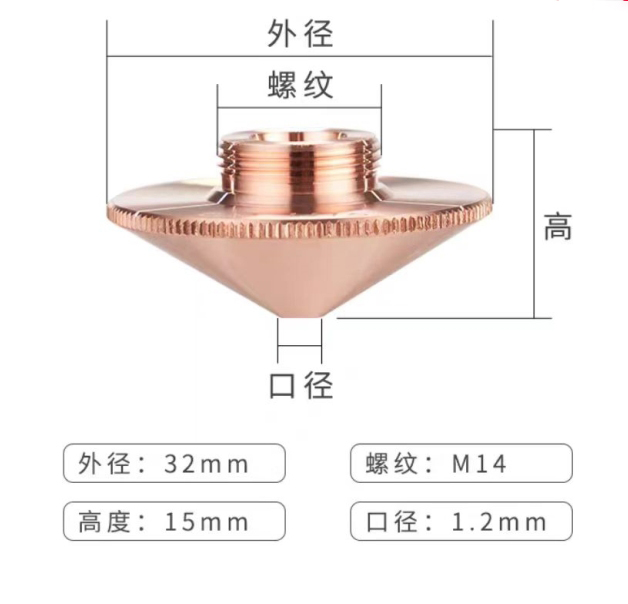

D32*M14*H15*Φ1.2  120GJT0512E

D32*M14*H15*Φ1.5  120GJT0515E

D32*M14*H15*Φ2.0  120GJT0520E

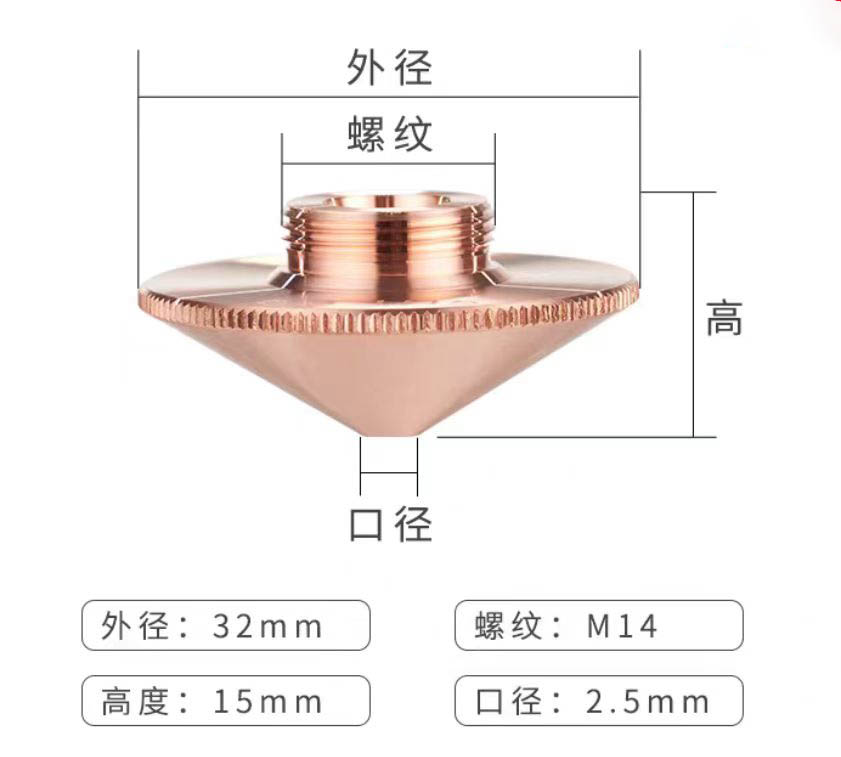

D32*M14*H15*Φ2.5  120GJT0525E

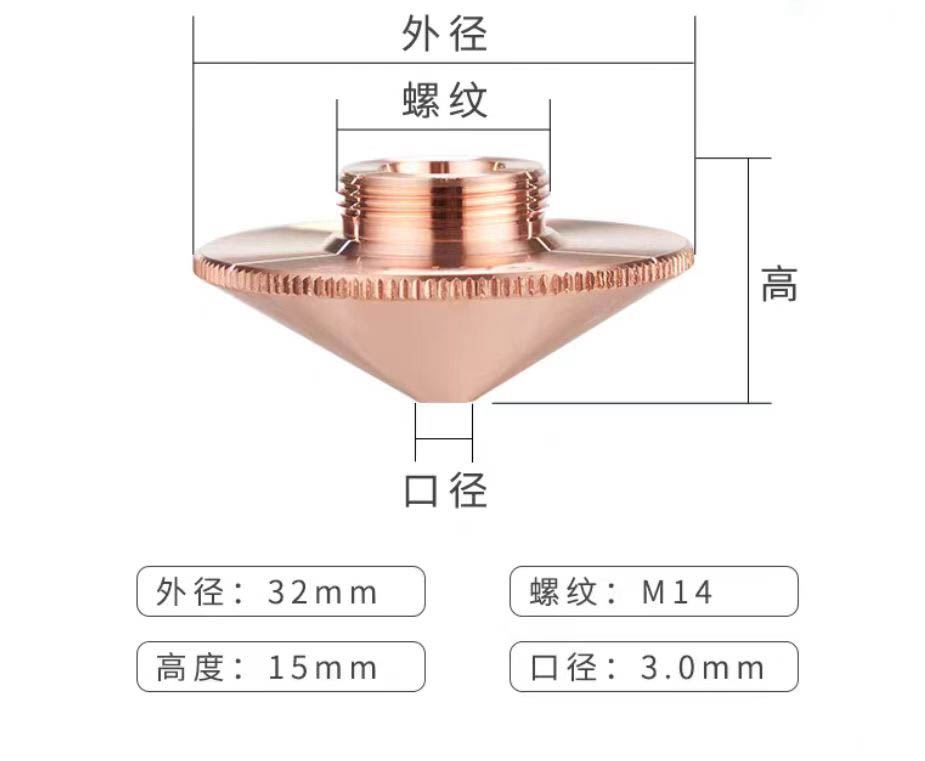

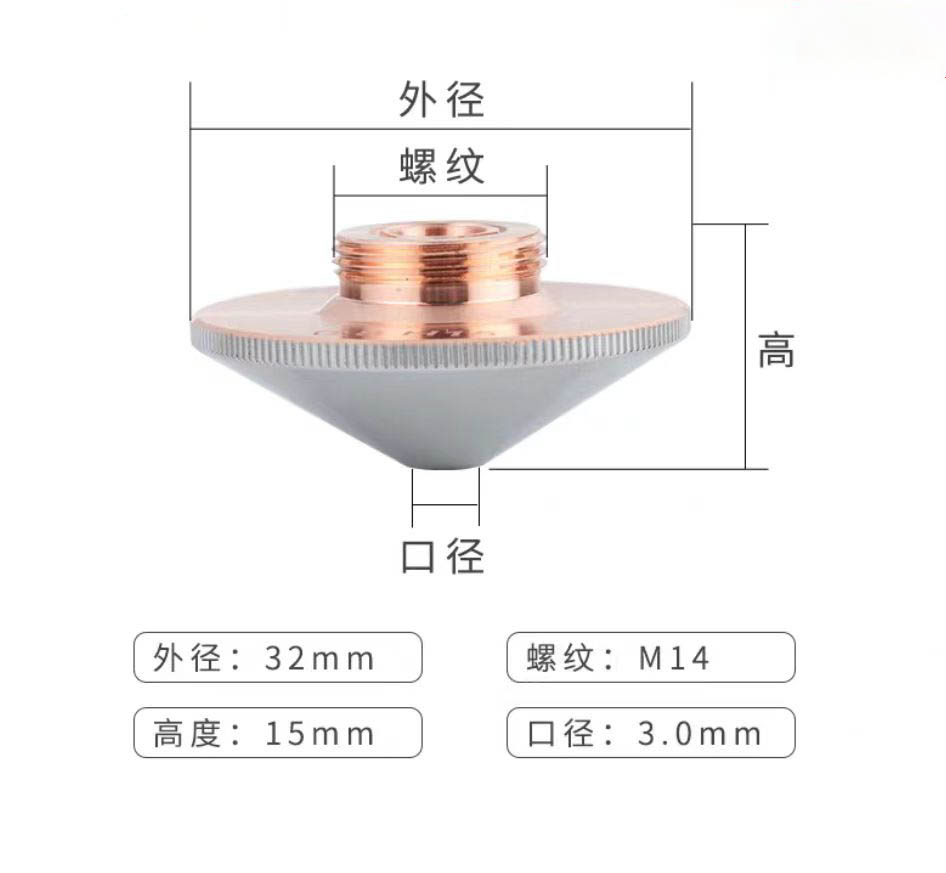

D32*M14*H15*Φ3  120GJT0530E

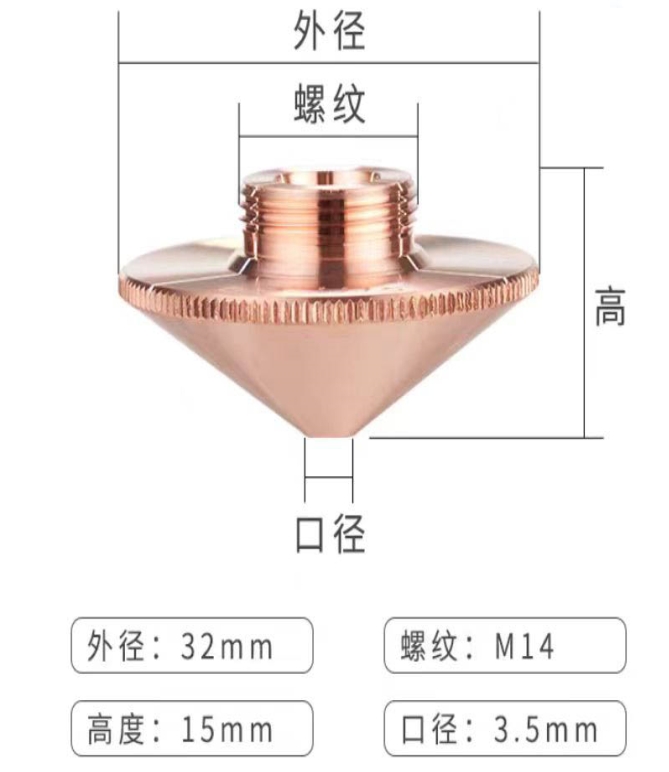

D32*M14*H15*Φ3.5  120GJT0535E

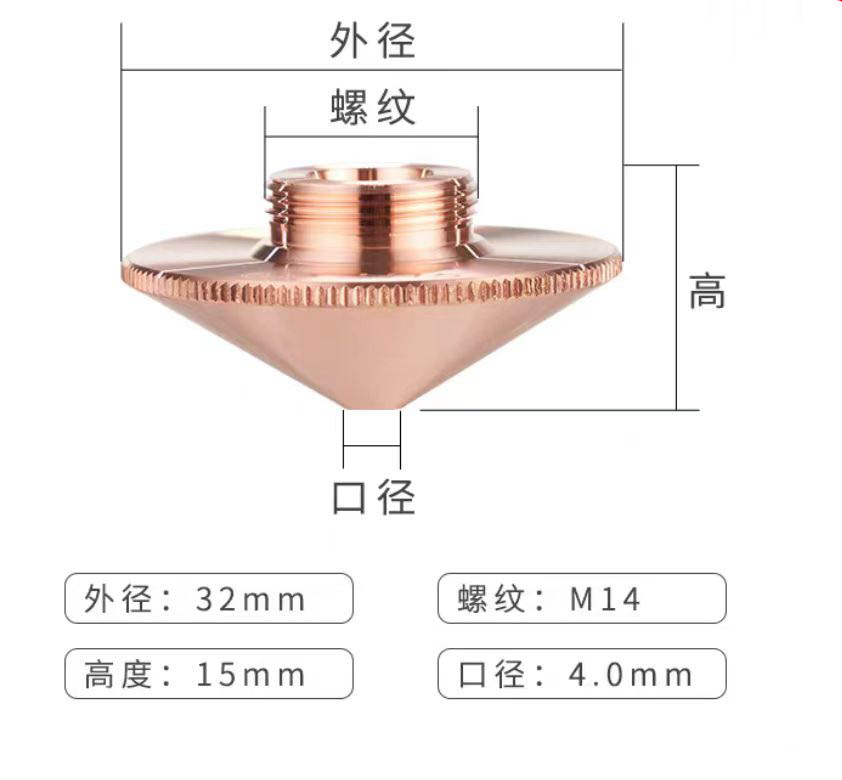

D32*M14*H15*Φ4.0  120GJT0540E

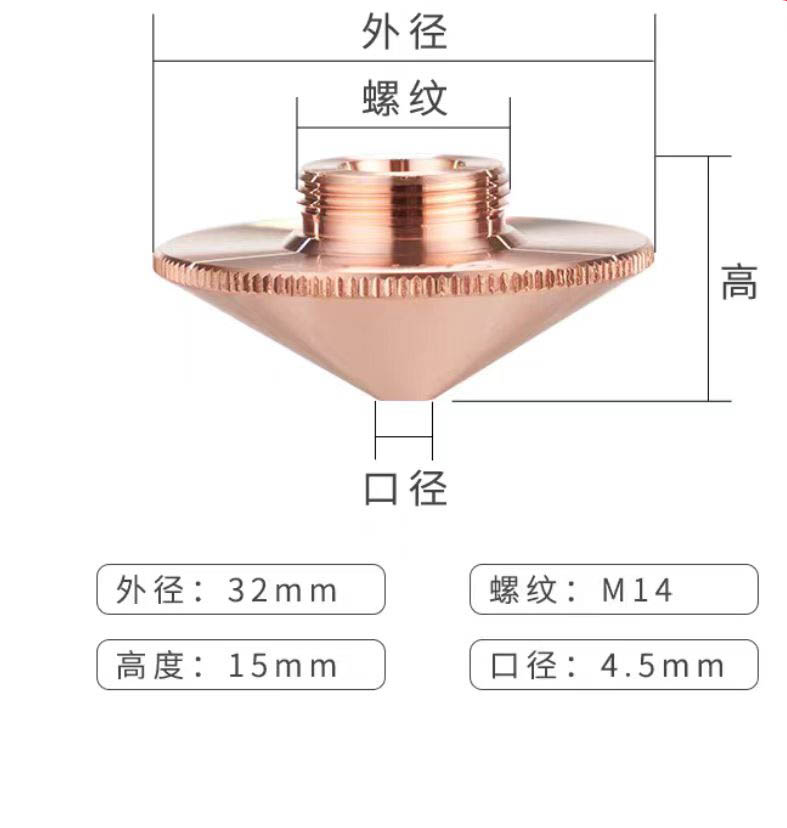

D32*M14*H15*Φ4.5  120GJT0545E

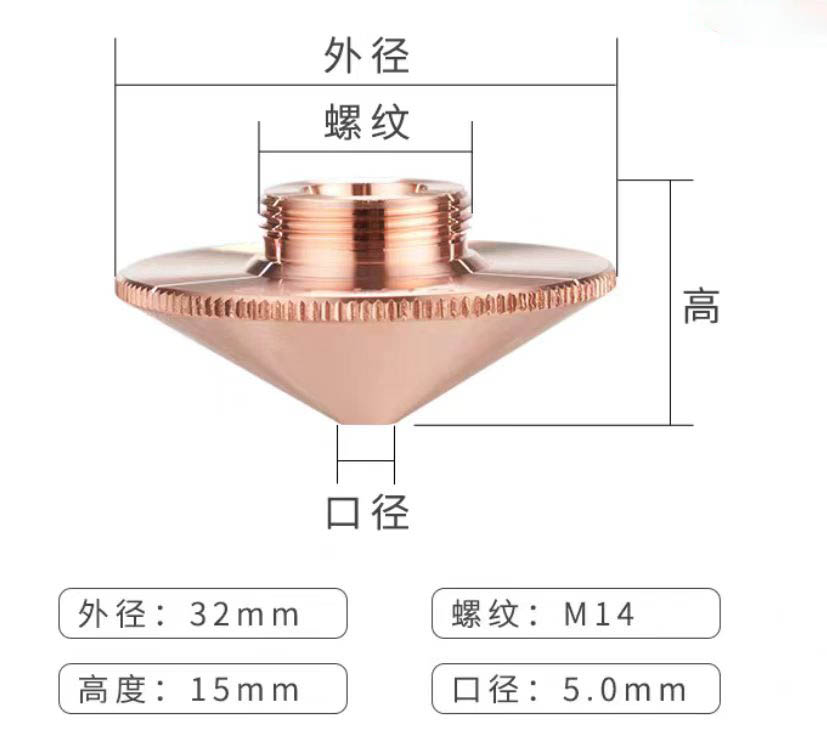

D32*M14*H15*Φ5.0 120GJT0550E

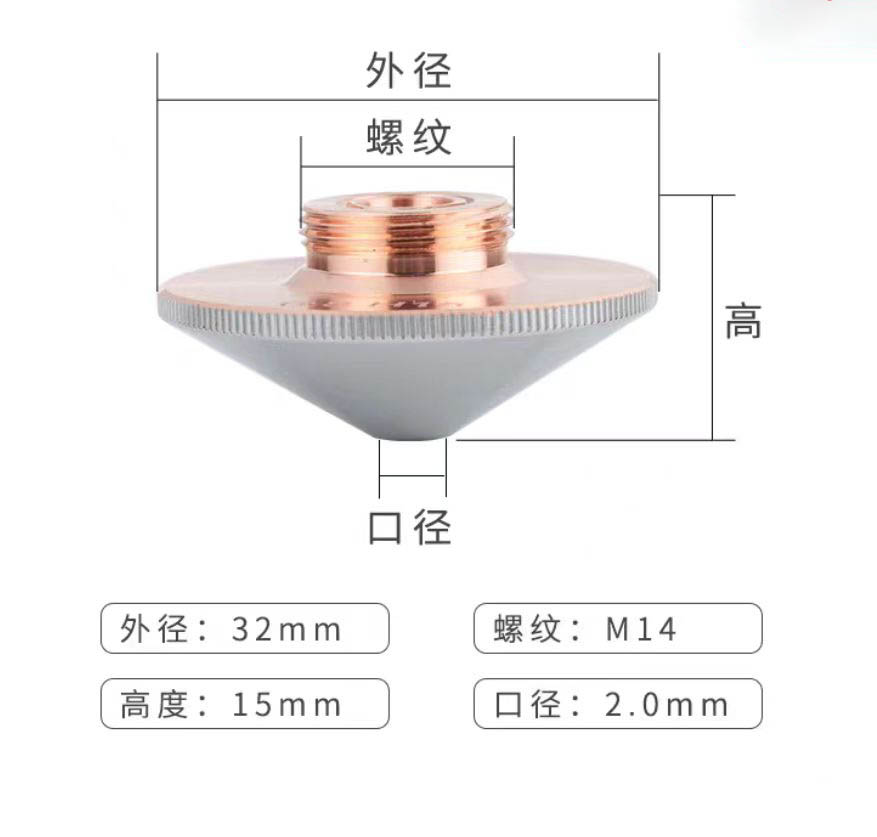

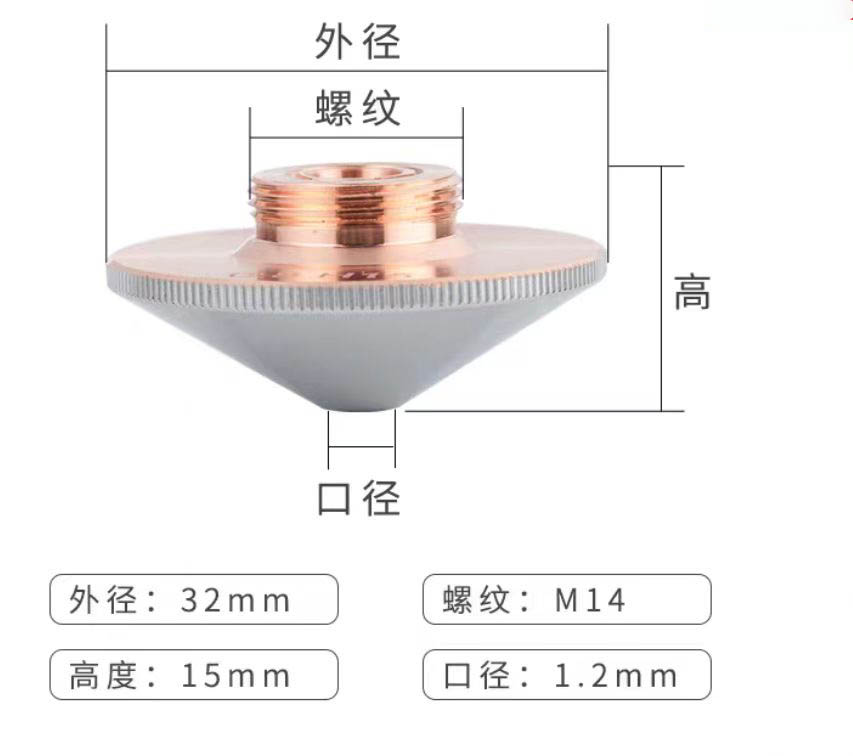

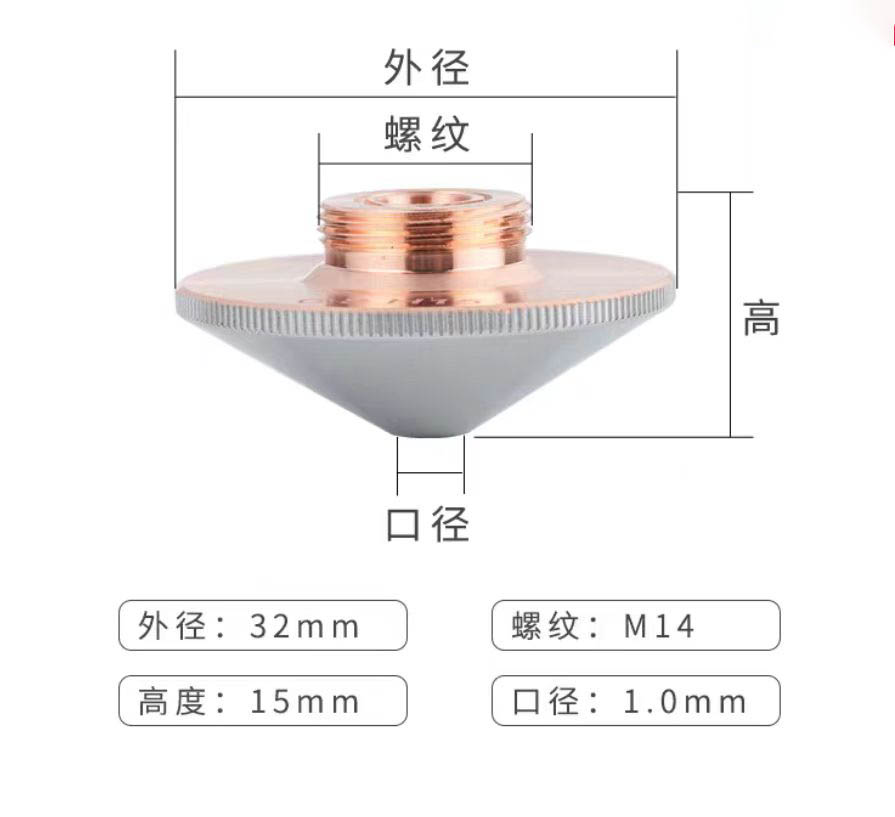

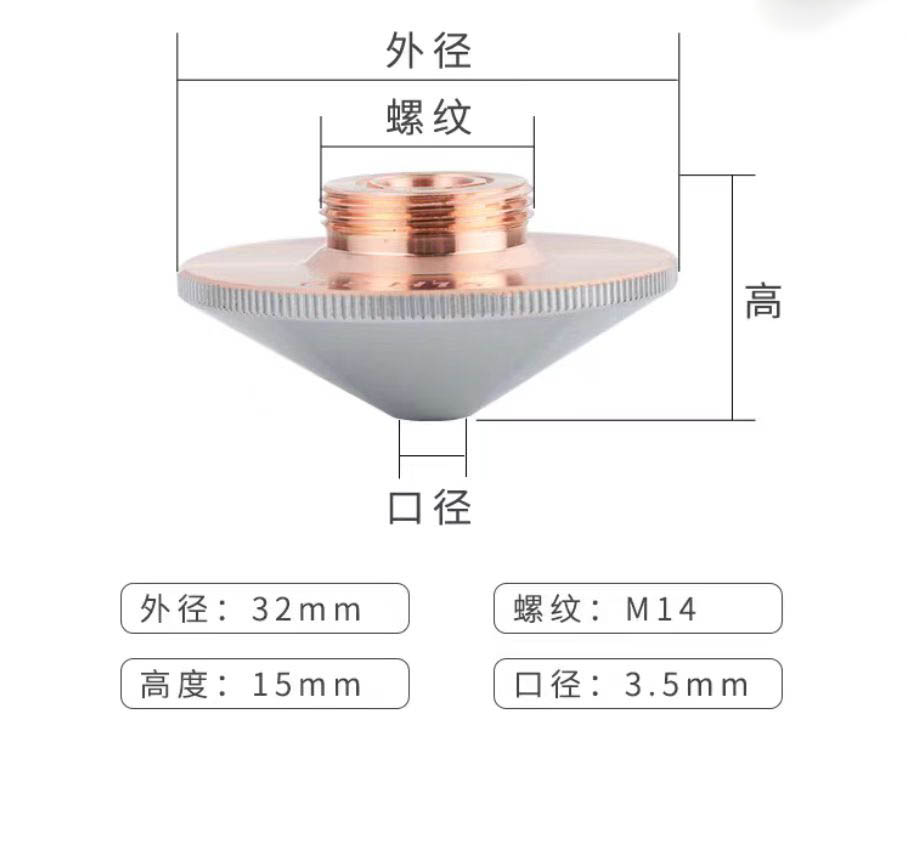

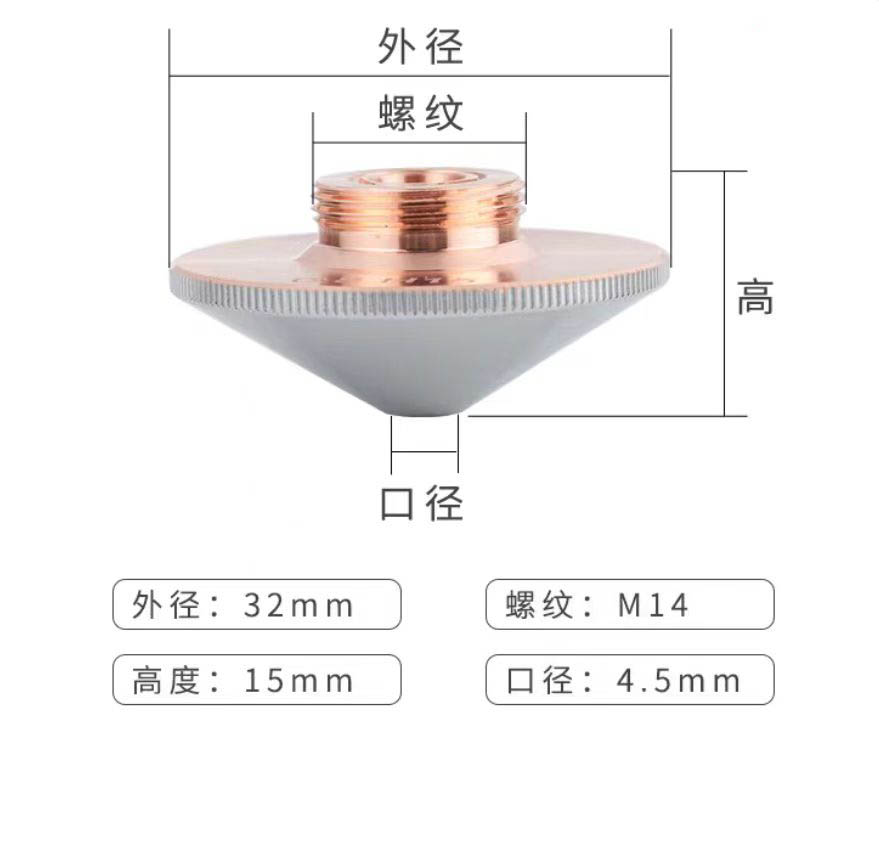

2.Double-Layer Nozzle

Two layer nozzle is for cutting steel when using O2 as aid gas.

This is the most popular size for two-layer nozzle.

D32*M14*H15*Φ1.0 120GJT0610E

D32*M14*H15*Φ1.2120GJT0612E

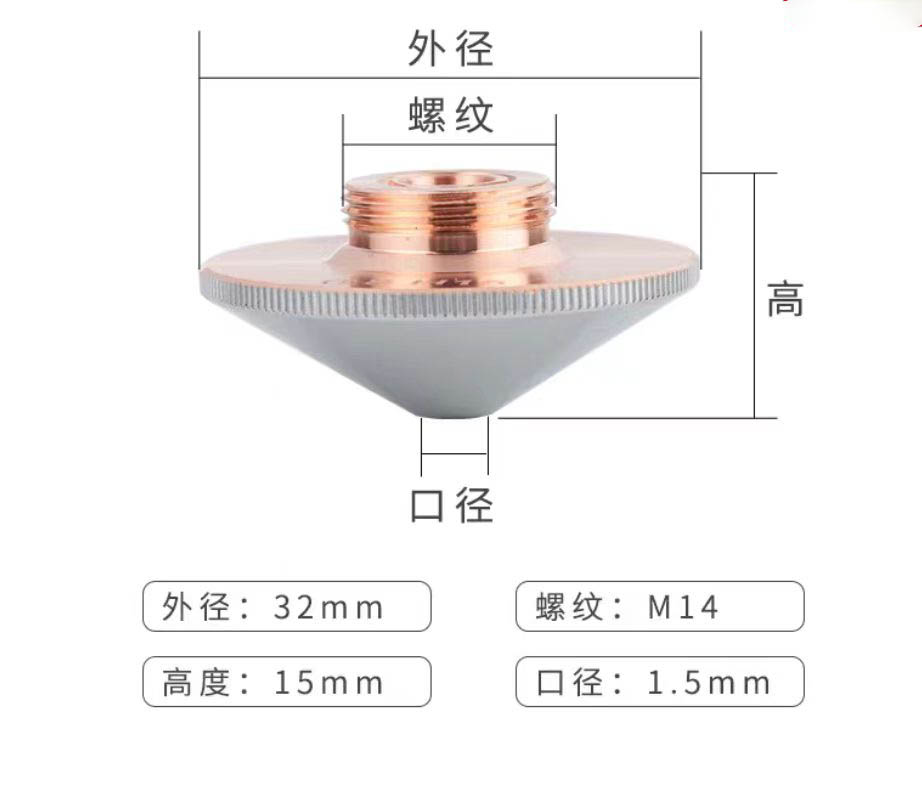

D32*M14*H15*Φ1.5  120GJT0615E

D32*M14*H15*Φ2.0  120GJT0620E

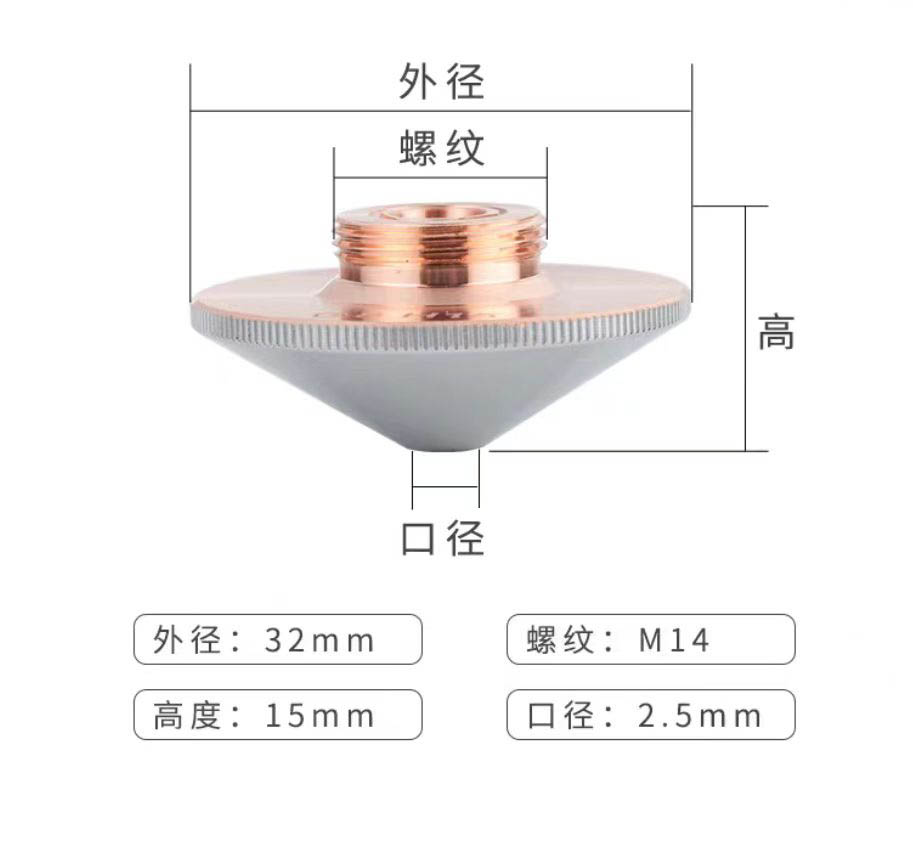

D32*M14*H15*Φ2.5    120GJT0625E

D32*M14*H15*Φ3.0   120GJT0630E

D32*M14*H15*Φ3.5   120GJT0635E

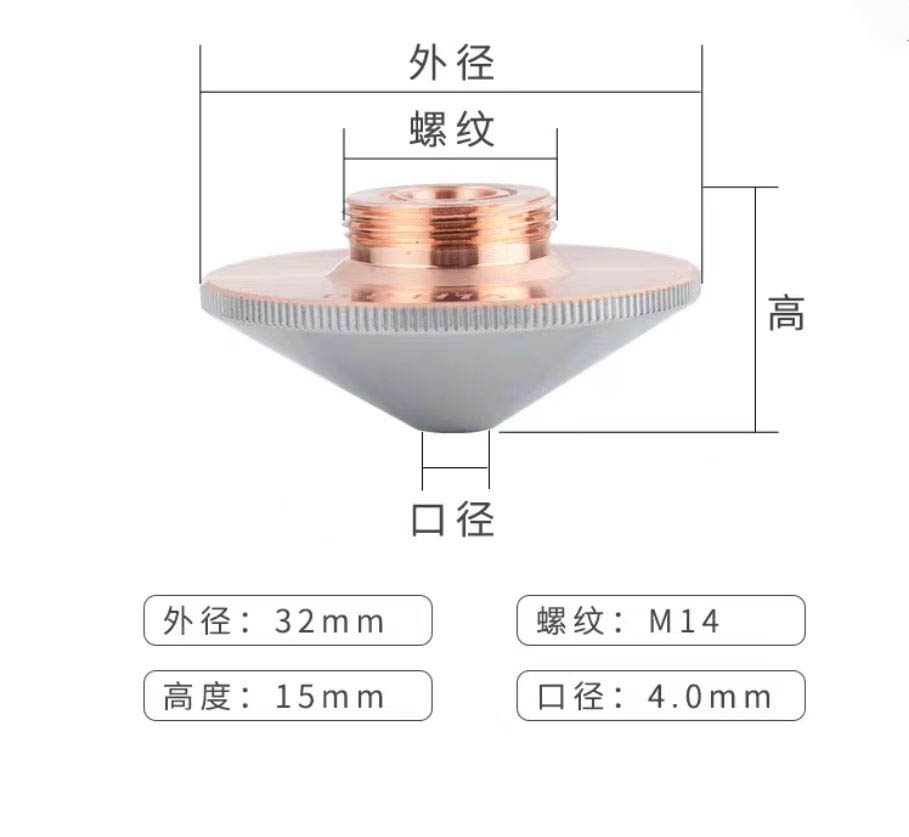

D32*M14*H15*Φ4.0   120GJT0640E

D32*M14*H15*Φ4.5   120GJT0645E
